The Qualified storage module configuration

Firewall rules

The machine running the FormFlow module for qualified storage (previously called Long-Term Docs) must have the following outgoing addresses enabled:

  • test environment/ pre / (awsctest.secusign.cz): 52.178.28.175:443

  • production (live) environment (awsc.secusign.cz): 13.73.167.130:443

If data message reauthorization is enabled, enable also the following:

  • ws1.mojedatovaschranka.cz:443

  • ws1c.mojedatovaschranka.cz:443

The addresses where to check server certificate revocation must be enabled too. Currently, they are certificates issued by thawte SSL CA - G2, this applies to the Long-Term Docs installation (Windows .net product):

  • tj.symcd.com:80

  • t1.symcb.com:80

  • t2.symcb.com:80

Java

Download x64 version of Java 1.8.X JRE edition (Java SE Runtime Environment 8) from the following website, where X is the most current update:

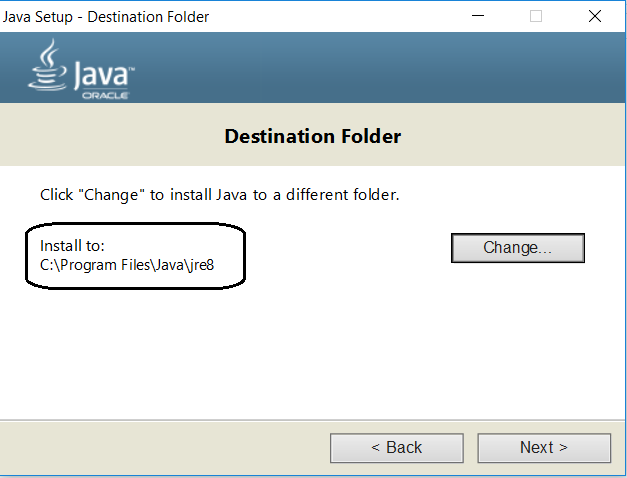

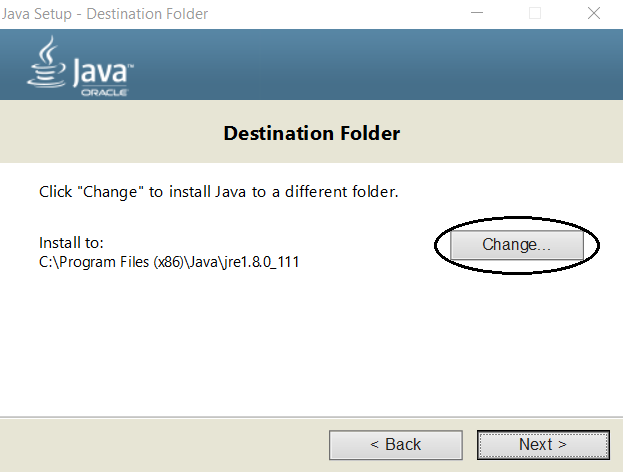

Follow the installation in a user-created folder, “jre8”.


The JDK edition (Java Development Kit) can also be installed.
